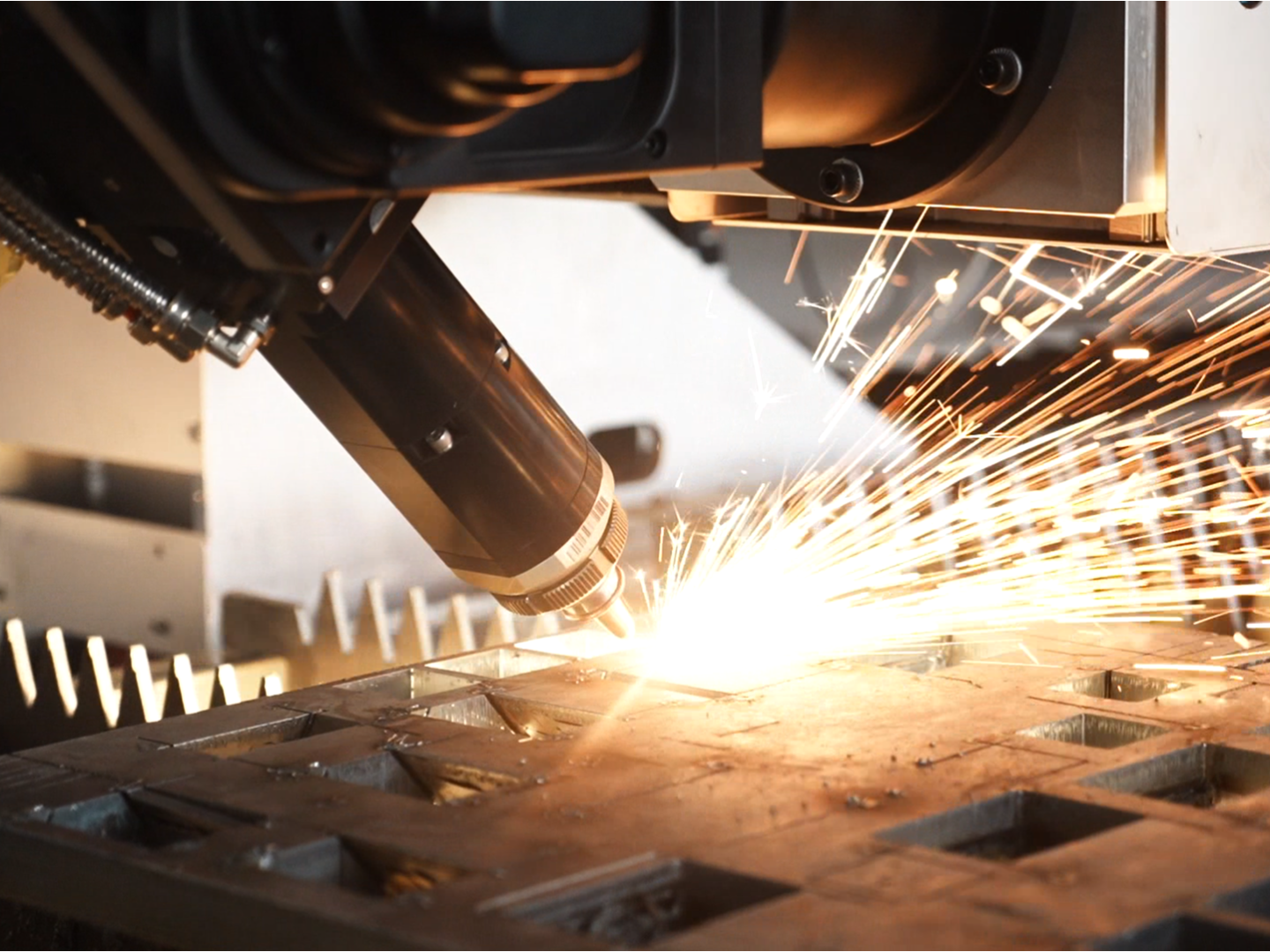

Laser Metal Cutting Machine Delivers 130m/min Cutting Speed

How High-Speed Laser Metal Cutting Machines Achieve 130m/min Performance

The Physics Behind Ultra-High-Speed Laser Cutting

Modern ultra high speed laser cutting depends heavily on getting just the right amount of photonic energy density, which often goes above 25 kW per square mm in today's machines. When this intense energy hits metal it basically vaporizes it on contact, so there's hardly any heat spreading to nearby areas. Running at around 130 meters per minute means the laser only touches each mm of material for about half a millisecond, which demands extremely accurate positioning controls, usually under 2 microns precision. The latest systems use those fancy Gaussian shaped beams along with focal spots smaller than 30 microns across to pack all that power into such tiny spaces. This makes possible those super clean cuts that used to be impossible with traditional lasers but were standard for plasma cutting techniques until recently.

Core Technologies Enabling 130m/min in Laser Metal Cutting Machines

Four innovations converge to sustain 130m/min performance:

1. Beam delivery systems using frictionless magnetic bearings achieve 5G acceleration rates
2. Adaptive optics compensate for thermal lensing at multi-kilowatt power levels
3. Dynamic gas nozzles maintain 20 bar assist pressure with ±0.5% stability
4. Real-time seam tracking corrects path deviations at 10 kHz sampling rates

These technologies reduce non-cutting time by 78% compared to conventional systems, with collision avoidance reacting in <2ms to material position shifts.

Case Study: Automotive Component Production at Record Speeds

One major automotive parts manufacturer recently saw impressive results after switching to 130 meters per minute laser cutting for their door panel blanks. They installed systems using 6 kilowatt fiber lasers which can handle 1.5 millimeter thick galvanized steel at around 127 meters per minute, maintaining less than 15 micrometers variation in cut width. What really stands out is how this new approach completely removed the need for those extra deburring steps that used to take so much time. The actual production time per part dropped dramatically from 8.2 seconds down to just 5.1 seconds. Looking at the bigger picture, over the course of twelve months, the company managed to produce nearly 2.8 million more components right where they were already operating, without needing any additional factory space. Even better, energy costs per unit actually went down by about 15%, something that might seem counterintuitive given the faster processing speeds.

Fiber Laser Power and Its Direct Impact on Cutting Speed

Modern laser metal cutting machines leverage ultra-high-power fiber lasers (6kW–30kW) to achieve unprecedented cutting speeds while maintaining precision. These systems convert electrical energy into coherent light with 40% efficiency—three times higher than traditional CO₂ lasers—enabling faster processing with lower energy costs (SLTL 2023).

Ultra-High-Power Fiber Lasers (6kW–30kW) in Metal Cutting Applications

Industrial high power fiber lasers are really good at handling materials as thick as 25mm when fast processing is needed. Take a look at what happens with a 30kW system cutting through 12mm stainless steel at speeds around 12.8 meters per minute. That's about six and a half times quicker compared to older 15kW models based on standard industry testing. The real game changer comes from how much faster these systems can pierce material too. For example, when working with just 3mm mild steel, the piercing time drops down to only 0.8 seconds. This kind of speed makes it possible to manufacture car parts in large quantities where each component needs to be made within less than half a minute total cycle time.

Material Thickness	6kW Speed	20kW Speed	30kW Speed
3mm Mild Steel	24m/min	85m/min	130m/min
6mm Aluminum	8.2m/min	18.5m/min	22m/min

Cutting Speed Optimization Through Increased Laser Output

The way power scales relates to cutting speed in a logarithmic fashion until certain material limits kick in. When working with sheet metals thinner than 10mm, boosting the laser power by 5kW typically results in cutting speeds that jump anywhere from 25 to 40 percent faster according to recent findings published by SME back in 2023. Things get interesting when we look at systems operating above 15kW though. At this point, beam quality measured through something called BPP starts making all the difference. Lasers that can maintain below 2.5 mm mrad values cut materials around 20% quicker compared to those with higher BPP ratings. This matters quite a bit for manufacturers looking to optimize their production processes while keeping costs down.

Diminishing Returns Beyond 20kW for Thin-Sheet Metal Processing

When working with materials thinner than 3mm, boosting power beyond 20kW doesn't really make much difference in cutting speed because of how heat builds up in the material. Some tests indicate that 1mm stainless steel gets cut at around 130 meters per minute when using 20kW power, but even with 30kW, the speed only goes up to about 138m/min. That's just a 6% boost, yet it needs almost twice as much energy. These days, advanced pulsed laser technology is actually beating traditional continuous wave systems for thin sheet work. They can achieve cutting speeds of approximately 150 meters per minute at peak power levels of 12kW thanks to better control over pulse timing and duty cycle optimization.

Material-Specific Performance of Laser Metal Cutting Machines

Cutting Speed Across Material Thicknesses: 0.5mm to 25mm Steel

The cutting speed of modern laser metal cutters generally gets slower as the material gets thicker. For instance, when working with 0.5mm mild steel, a standard 6kW fiber laser can reach speeds around 130 meters per minute with very tight tolerances of about plus or minus 0.1mm. That's roughly 87% quicker than what we see from plasma cutting methods according to the Industrial Cutting Report from 2023. Things change quite a bit when dealing with thicker stuff though. At 25mm structural steel, speeds drop down to just 18m/min because of thermal inertia issues. To keep good edge quality at these lower speeds, operators need to adjust the focal length adaptively during operation. And speaking of thick materials, manufacturers typically find they need to boost power output by somewhere between 17 and 23 percent for every additional millimeter past the 10mm mark to combat heat loss problems.

Optimal Laser Settings for Stainless Steel and Aluminum

When working with stainless steel, operators typically need to set the nitrogen assist gas between 18 and 22 bar pressure levels to keep oxidation at bay. The laser power should be around 90 to 95% maximum when dealing with 5mm thick sheets. Things get interesting with aluminum alloys where pulsed laser modes become necessary. According to recent research from Material Processing Journal back in 2023, running the laser at about 700Hz frequency cuts down on reflectivity problems by roughly 40% compared to just using continuous wave operation. Getting the nozzle positioning right matters too for both materials. Standoff distances below 0.8mm help avoid unwanted gas turbulence, and this setup generally maintains kerf widths under 0.3mm which is pretty tight for most industrial applications.

High-Speed Efficiency on Mild Steel vs. Challenges in Thick-Plate Cutting

When working with mild steel, productivity hits new heights. A standard 3kW system can cut through 1.5mm sheets at around 80 meters per minute when using oxygen assistance, finishing automotive chassis parts about two thirds quicker than old school stamping methods. But things get trickier with thicker materials. For those 40mm carbon steel plates, manufacturers need to step up to 20kW lasers that only manage about 1.2 meters per minute. The kerf width balloons out to 1.2mm here, which is roughly three times what we see in thinner sheet metal work. And speaking of waste, thick plate operations typically generate between 12 and 15 percent scrap material compared to just 3 to 5 percent for thin metal fabrication jobs. These numbers matter a lot for cost control in production environments.

Pushing the Limits: High-Power Lasers for Heavy-Duty Metal Applications

20kW fiber lasers now cut 50mm steel at 0.8m/min, enabling single-pass processing of shipbuilding components that previously required 4–5 plasma cutting cycles. While 30kW systems exist, practical tests show diminishing returns—power beyond 20kW improves cutting speed by only 8–10% per 5kW increment in thick-metal applications (Heavy Industry Manufacturing Study 2023).

Integrating 130m/min Laser Cutting into Industrial Production Workflows

Scaling Up Manufacturing with High-Volume Laser Metal Cutting Machines

Laser metal cutting machines today can scale production thanks to their integration with CAD/CAM software and automated material handling systems. According to Fabrication Tech Institute data from 2023, these setups cut changeover times down by around 65% in auto stamping shops. The dual loading stations are another game changer, allowing continuous processing even on thick sheet metals measuring up to 130mm. When manufacturers combine fiber lasers with robotic sorting systems, they typically see production cycles shortened by about 40%. This combination works especially well for factories dealing with mixed batches of stainless steel parts where flexibility matters most.

Laser vs. Plasma Cutting: Balancing Speed, Precision, and Material Thickness

When working with materials thinner than 25mm, laser cutting at speeds around 130 meters per minute beats plasma systems hands down when it comes to speed and accuracy. Lasers cut about four times quicker than plasma methods, plus they achieve much tighter tolerances too – roughly ±0.1mm versus plasma's ±0.8mm range. That said, plasma still holds the edge on cost effectiveness for thicker structural steel parts over 25mm thick. Another big difference lies in how much material gets wasted during cutting. The laser produces a very narrow kerf width of just 0.2mm, which means anywhere from 12% to 18% less scrap compared to plasma's wider cut of between 0.8mm and 1.5mm. Plus, lasers cause significantly less distortion in the heat affected zone, making them particularly valuable for sensitive applications like aerospace grade aluminum alloys where even small deformations matter a lot.

FAQ

What speeds can modern laser cutting machines achieve?

Modern laser metal cutting machines can achieve speeds up to 130m/min, depending on the machine's configuration and material being cut.

How do laser cutting machines maintain precision at high speeds?

Laser cutting machines maintain precision through the use of advanced technologies such as adaptive optics, real-time seam tracking, and precise positioning controls.

What are the energy efficiency benefits of fiber lasers?

Fiber lasers convert electrical energy into coherent light with around 40% efficiency, offering significant energy savings compared to traditional lasers.

What types of materials can benefit from high-speed laser cutting?

Materials such as mild steel, stainless steel, and aluminum alloys benefit from high-speed laser cutting due to its ability to maintain precision and reduce waste.

Are there limitations to increasing laser power beyond 20kW?

Yes, increasing laser power beyond 20kW offers limited gains in cutting speed for thin-sheet metals, and requires considerably more energy.
