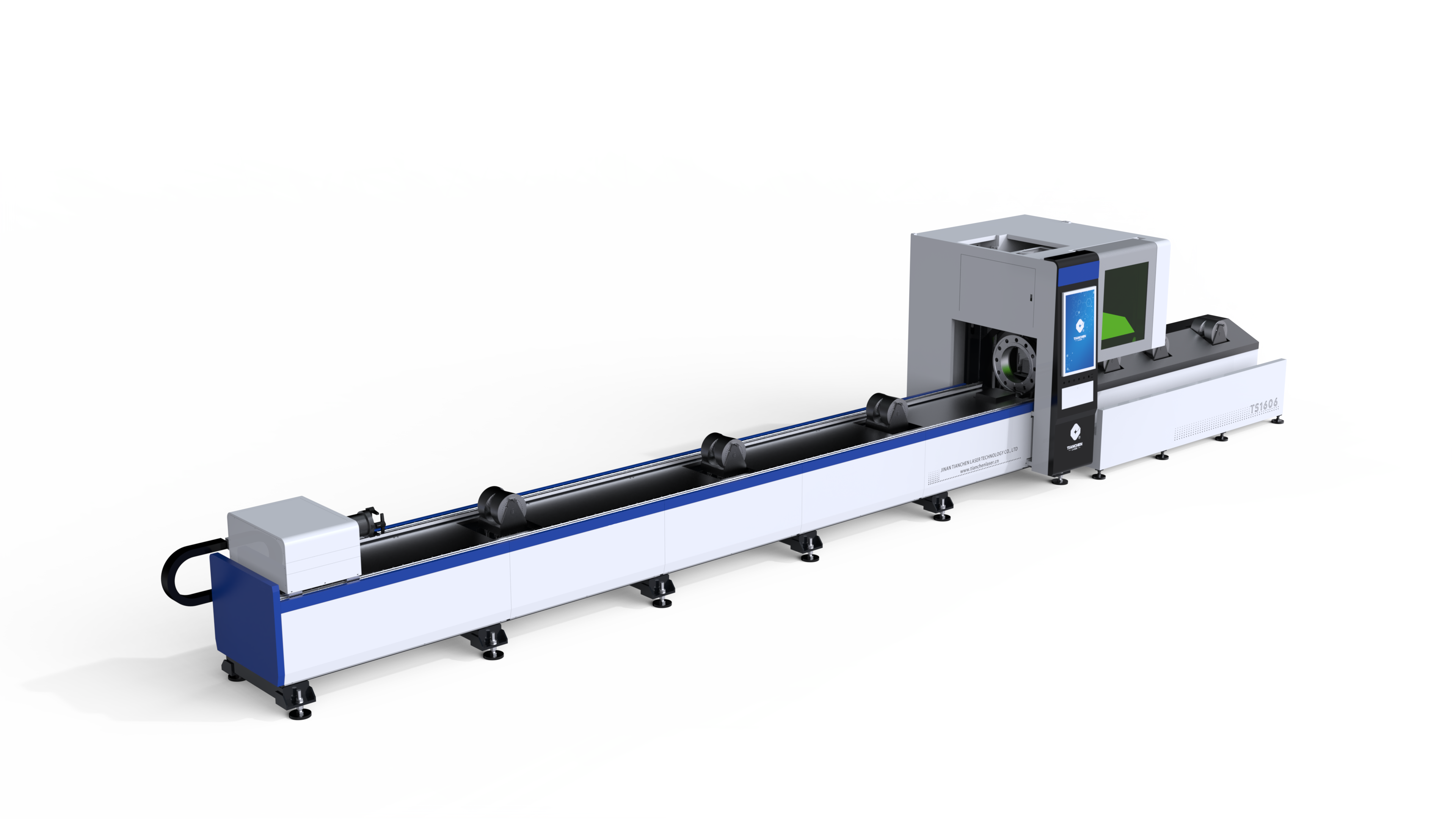

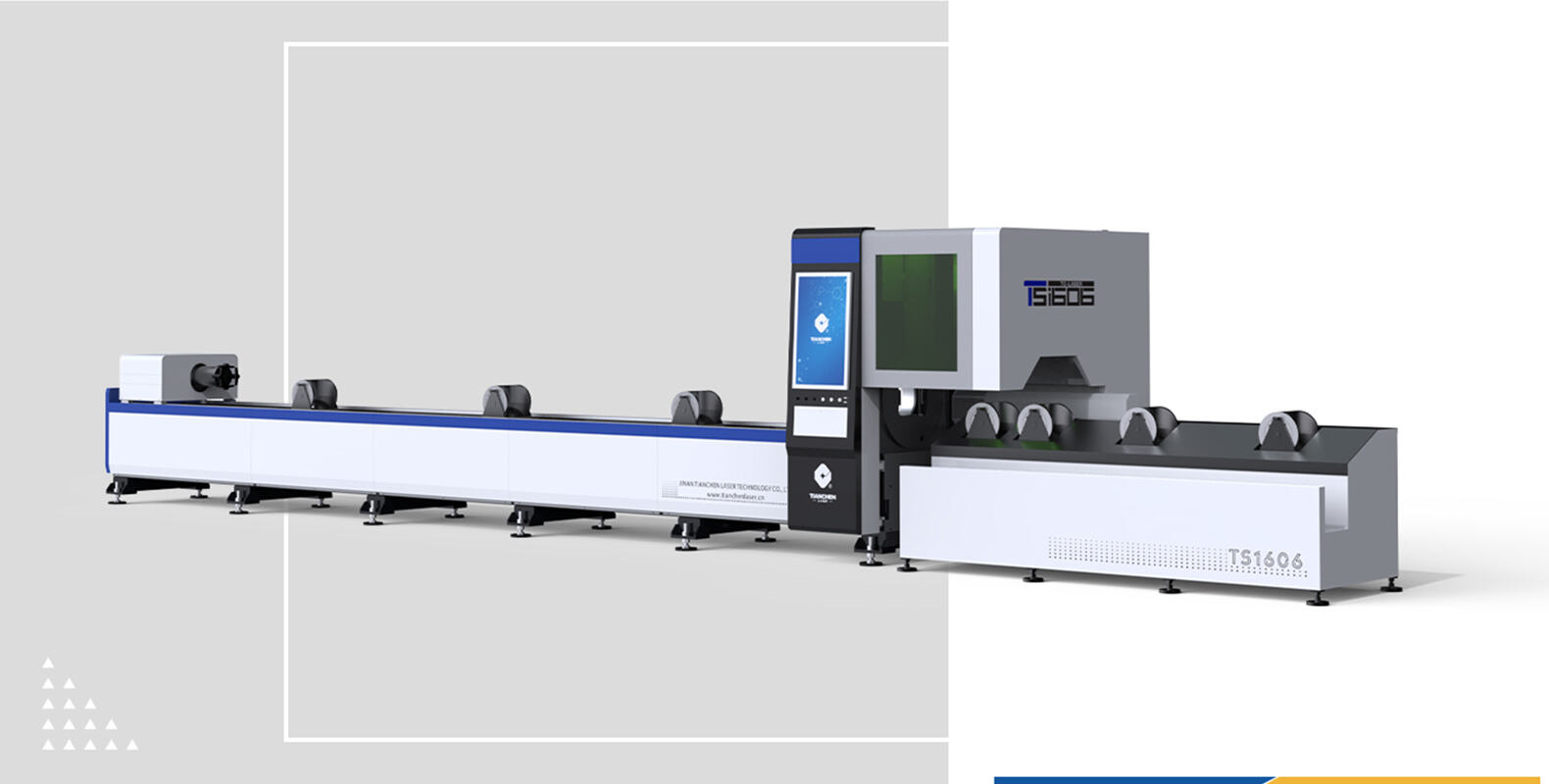

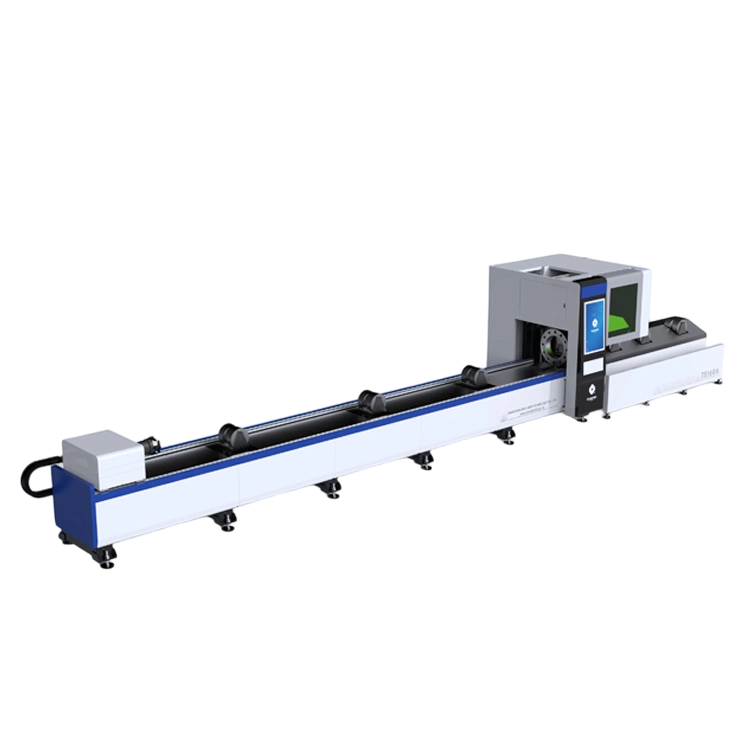

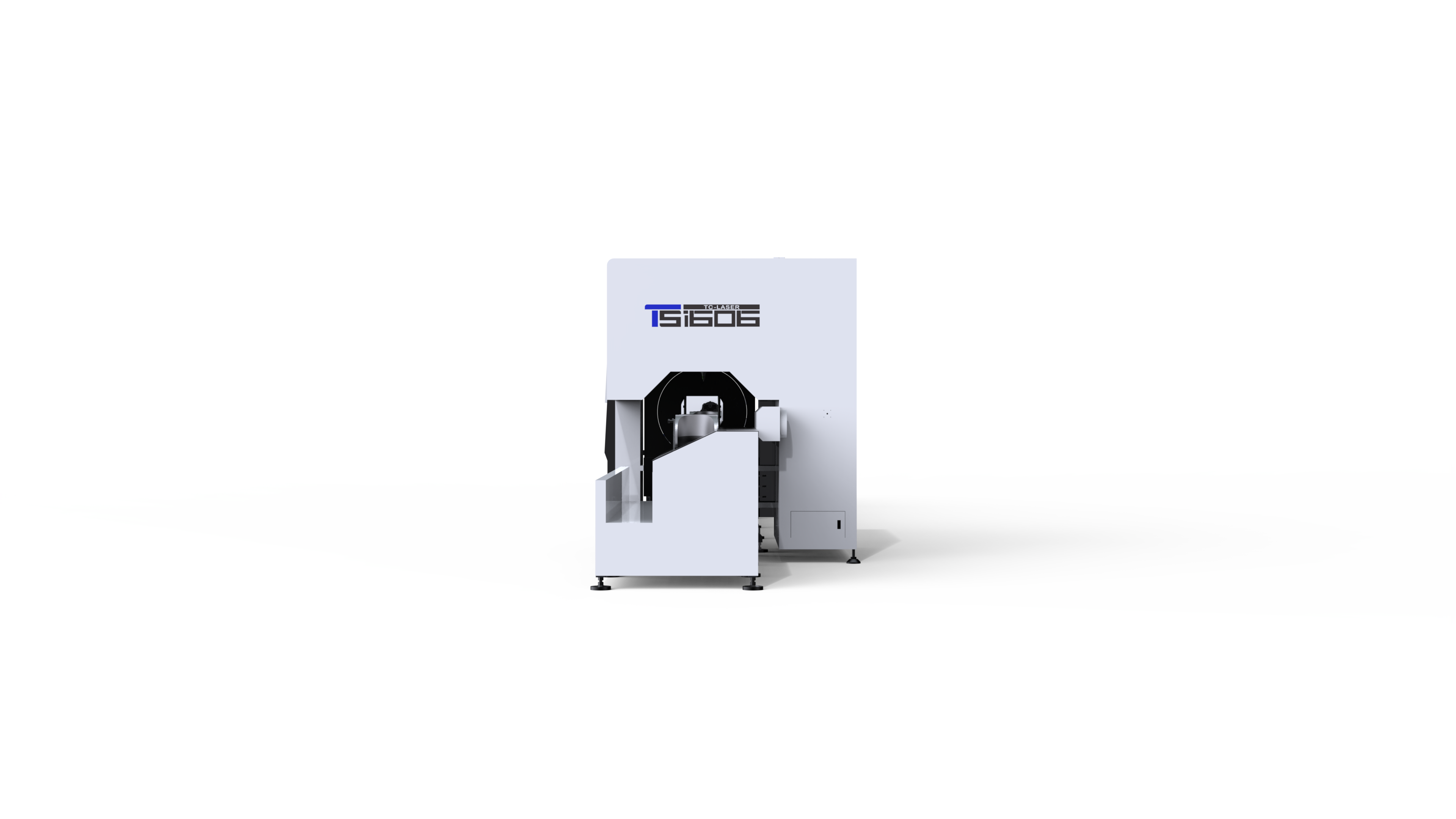

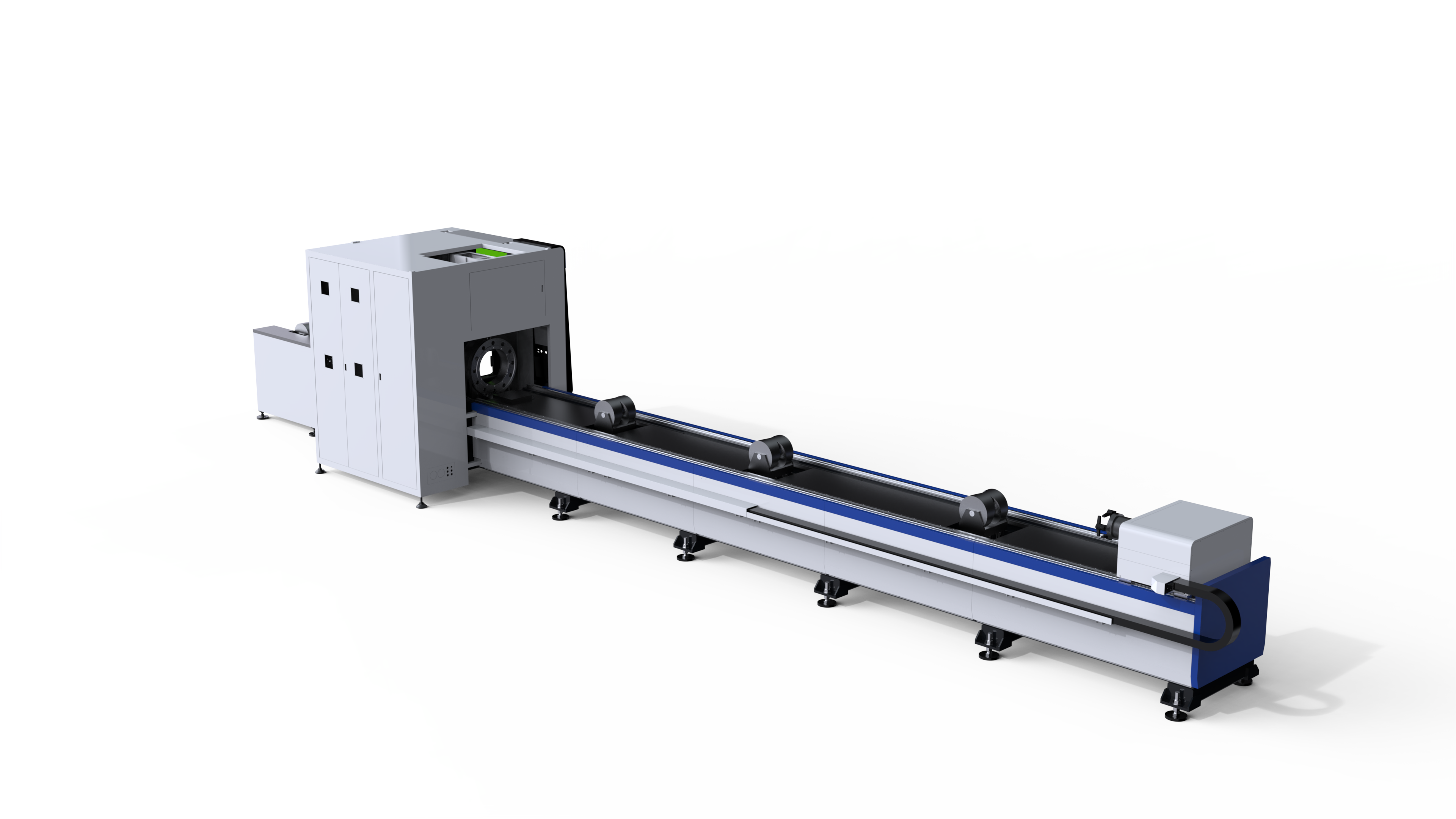

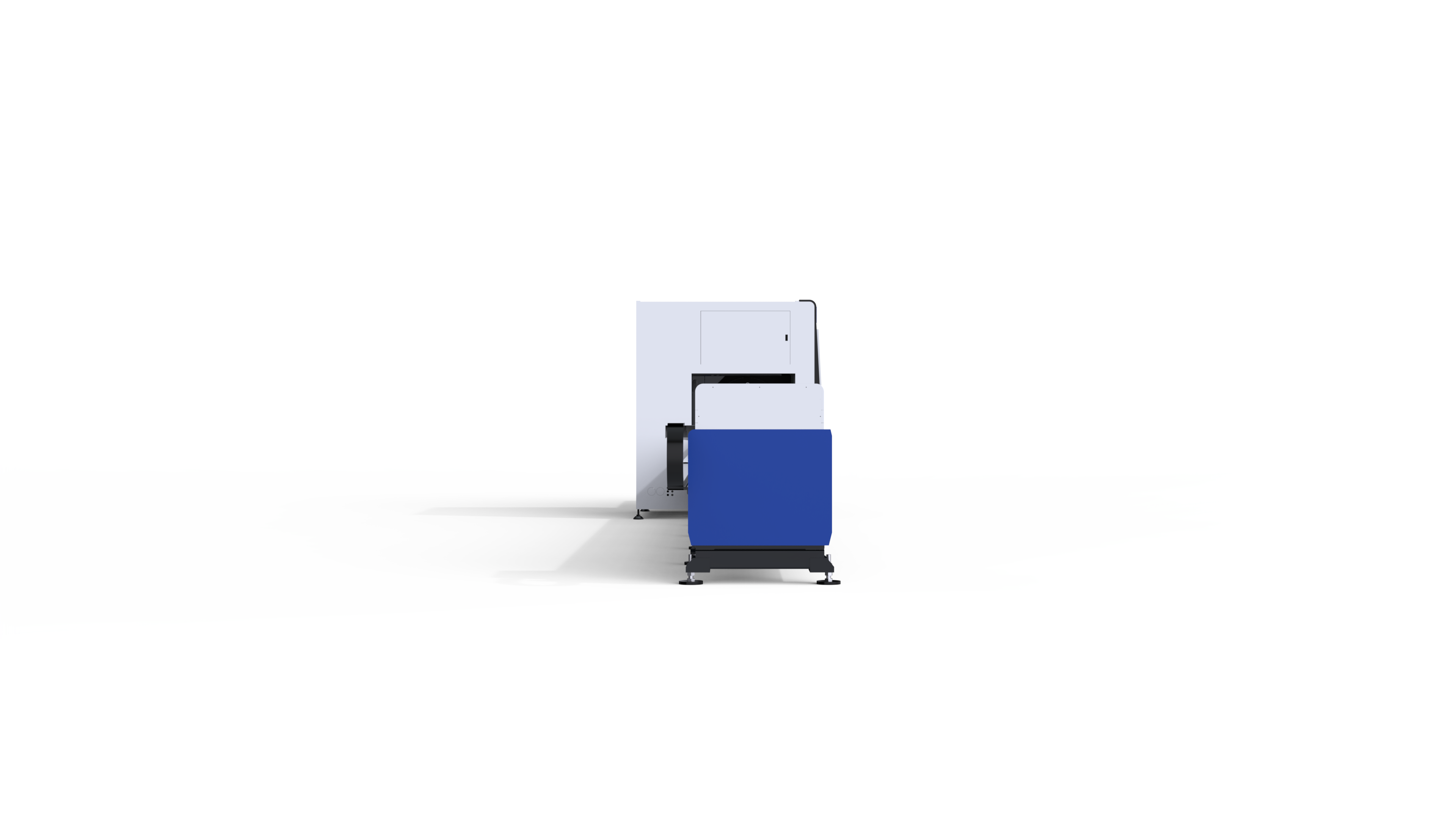

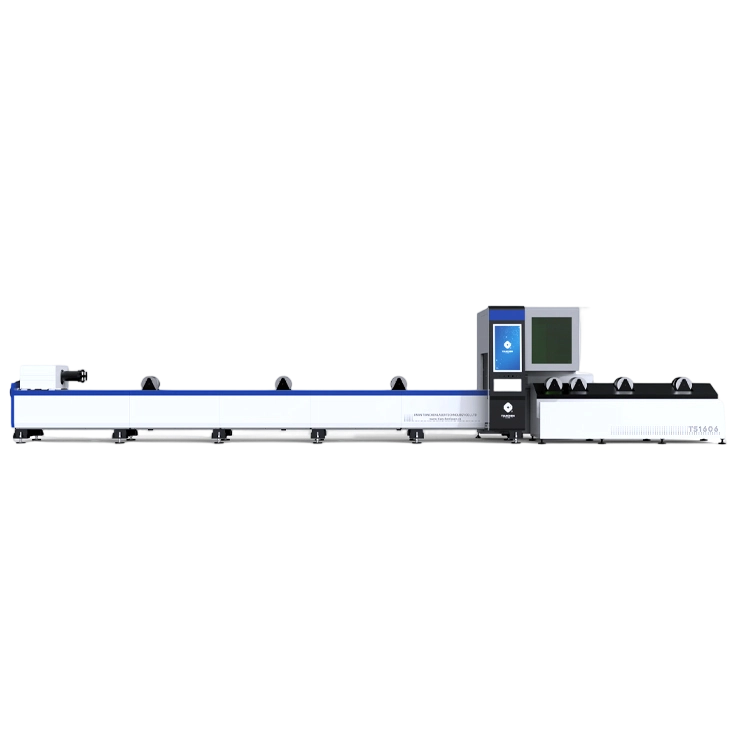

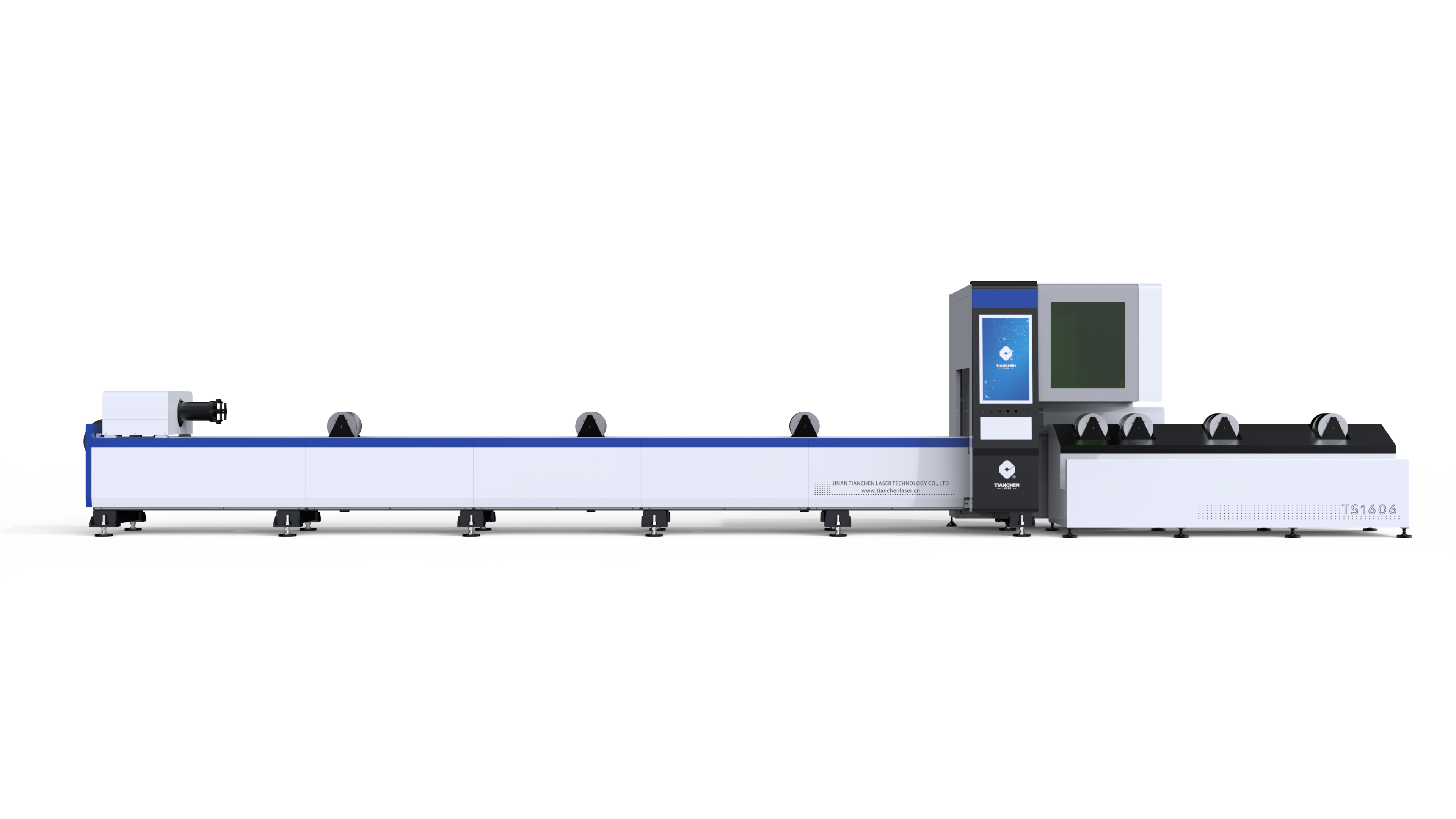

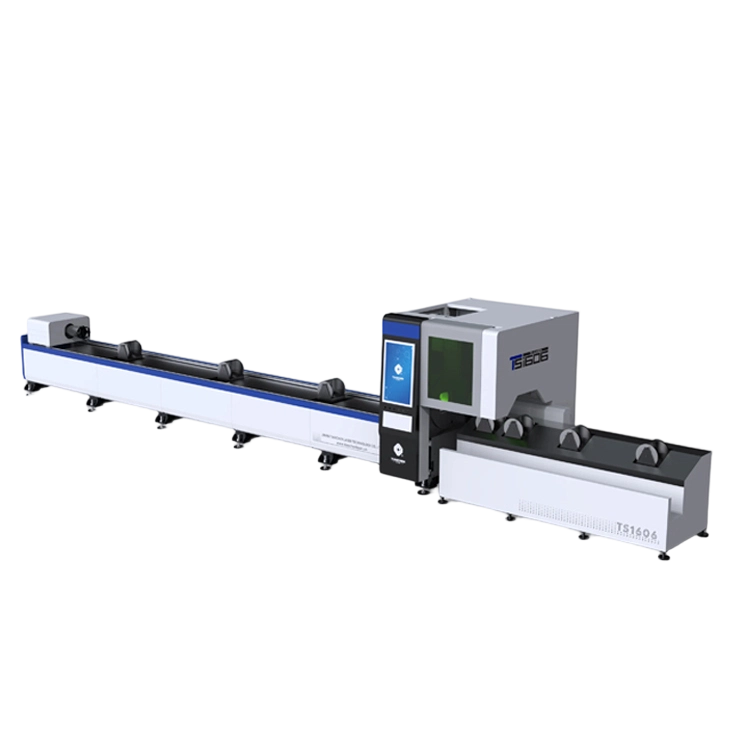

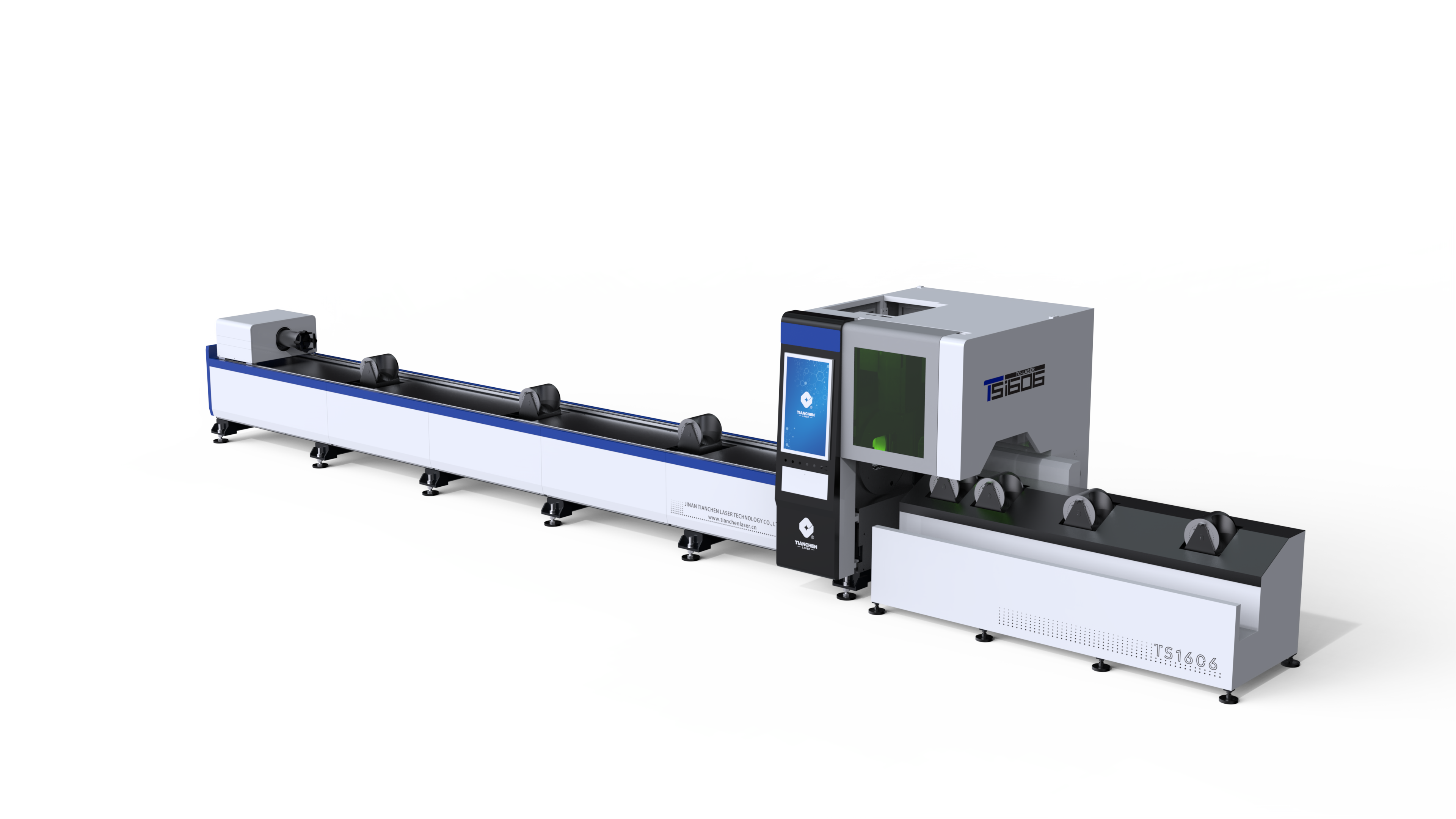

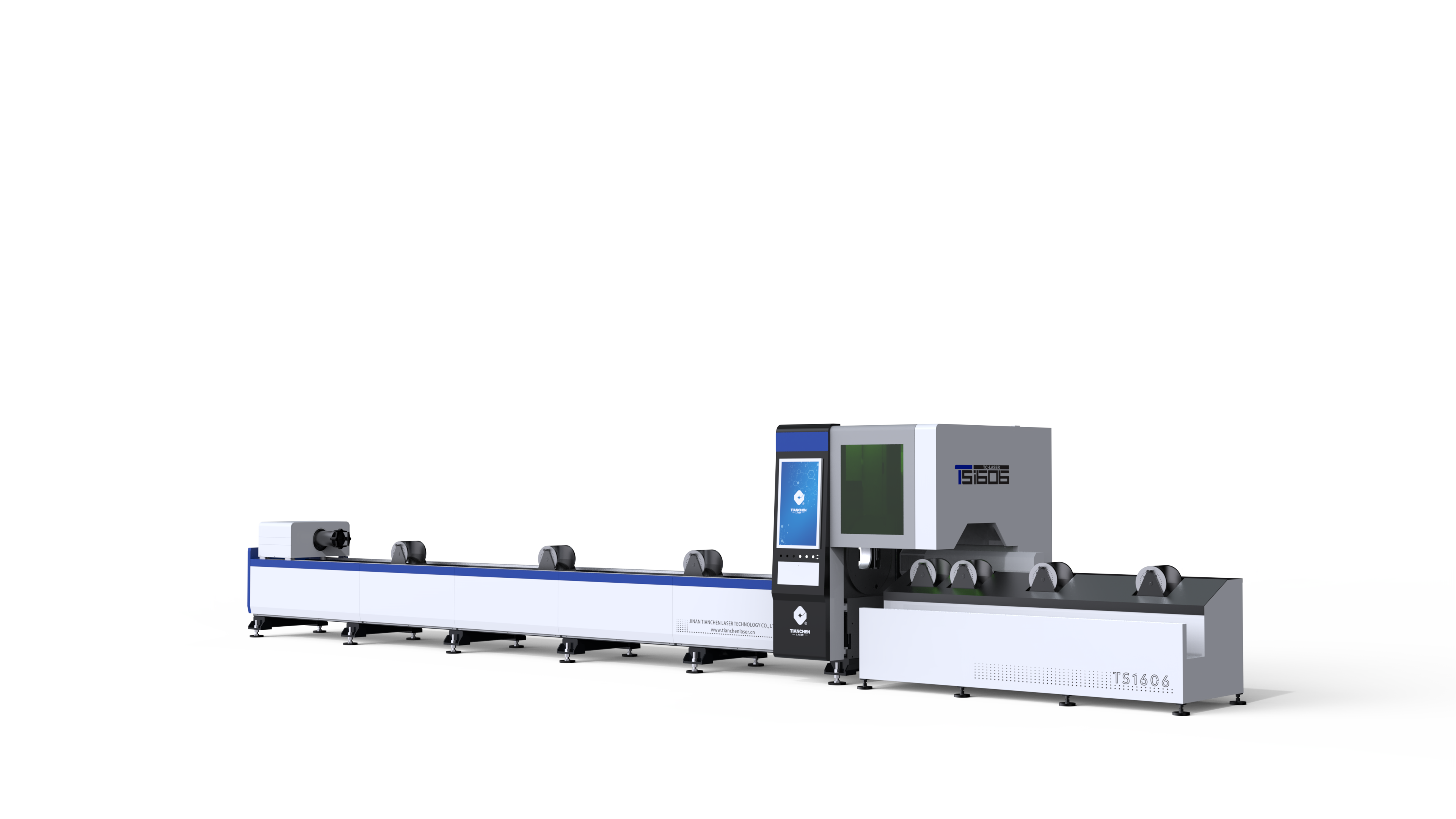

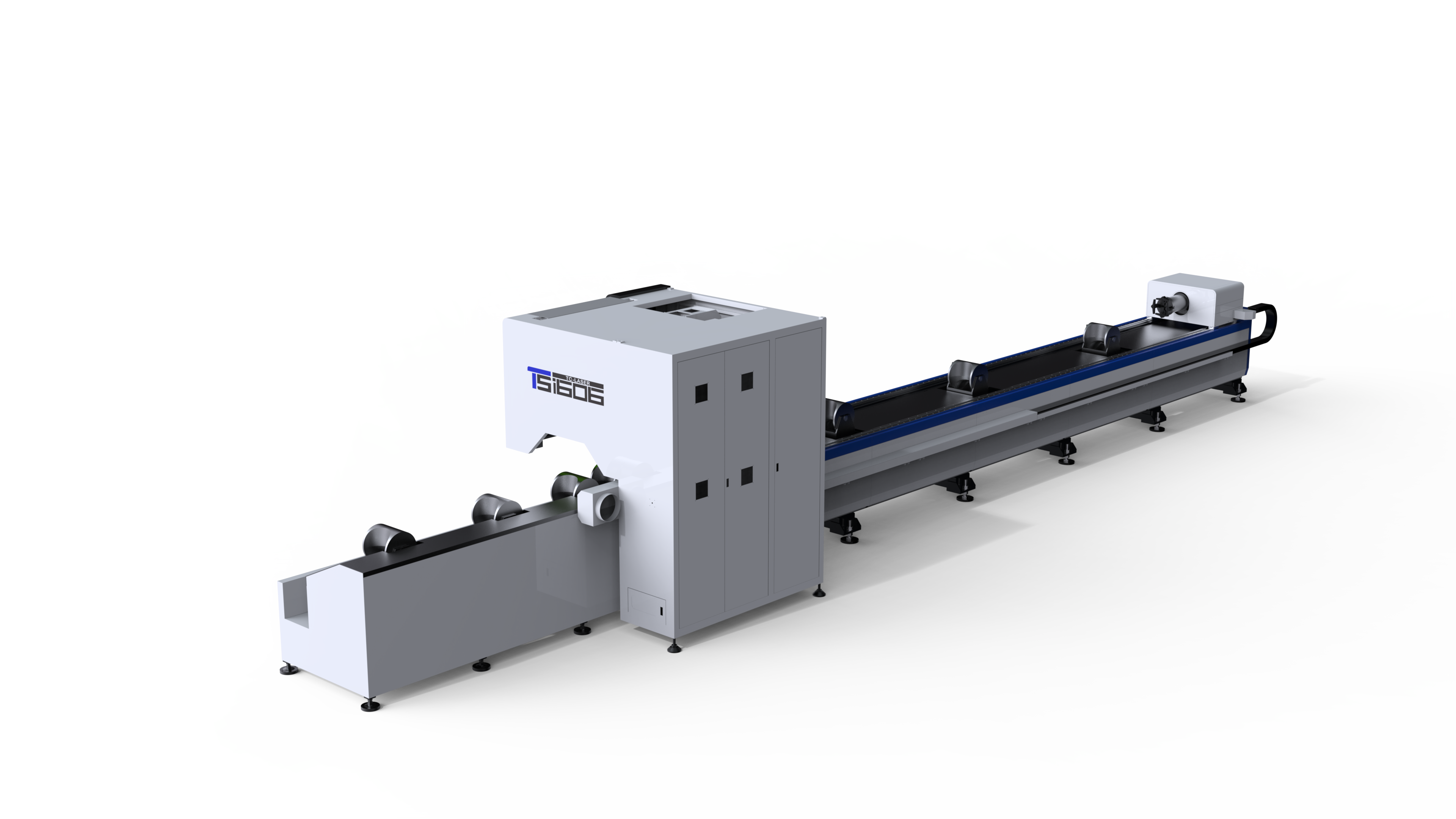

Fiber Laser Tube cutting machine
Power Selection: 1.5kw-6kw
Cast : Friendly on 25mm below cutting
Product Model: TS-series
Featured Function (Selling Point): Upgraded software ，new operation
Certification Names: CE, FDA, ISO9991
After-sales Service: Local service support
- Overview
- FAQ
- Related Products

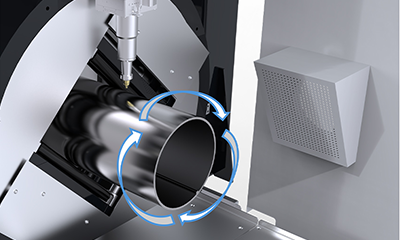

Shape Identification:
Automatically recognizes standard and special-shaped pipes, including round, oval, square, and more, eliminating manual configuration.
Non-Inductive Detection:
Employs continuous, high-efficiency detection without human intervention, streamlining operations and boosting productivity.
Exceptional Precision:
Guarantees cutting accuracy with a position deviation within 0.15mm over the entire meter section, ensuring consistency and quality in every cut.

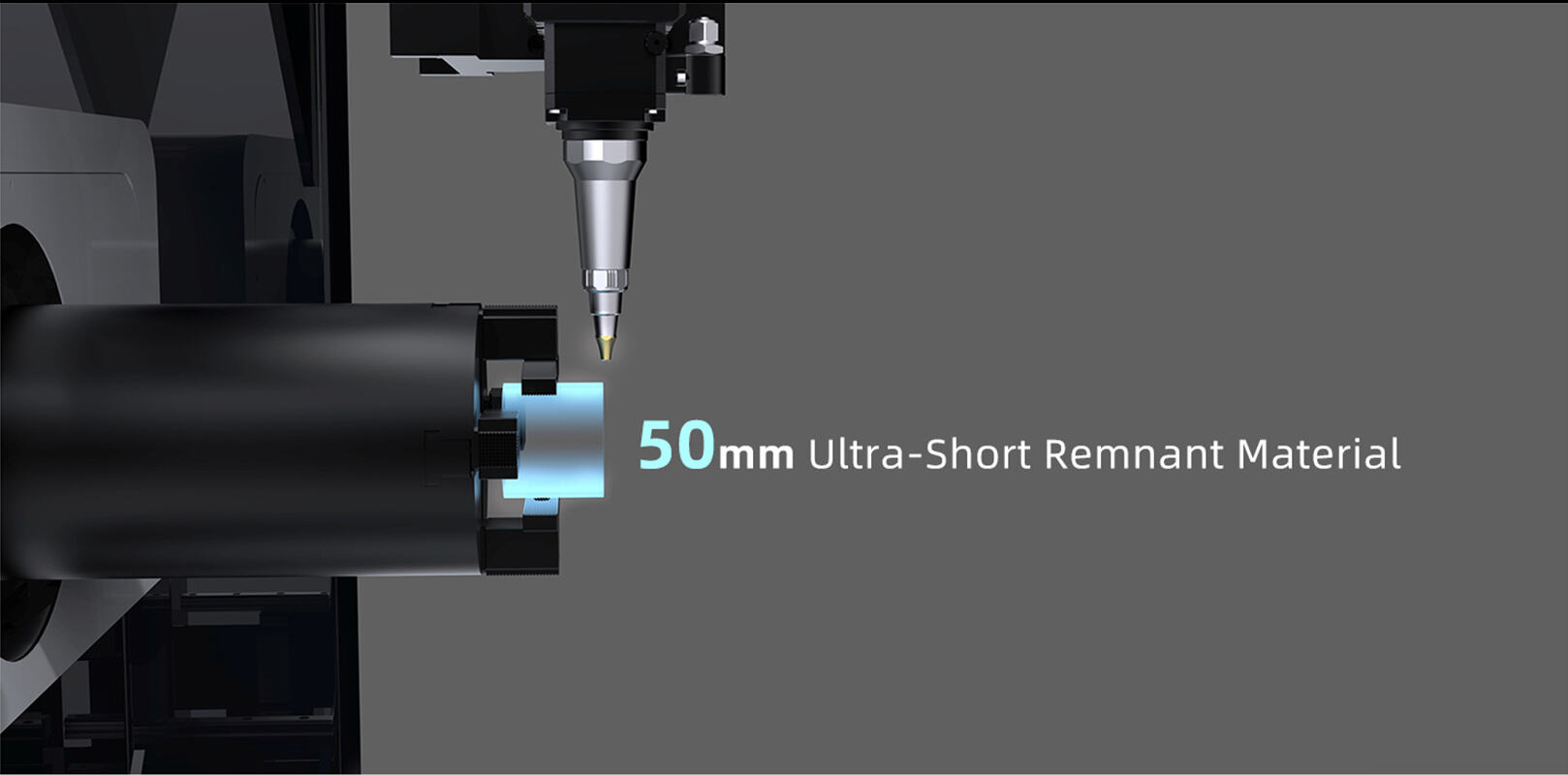

Ultra-Short Remnant Material, striving for Every Millimeter

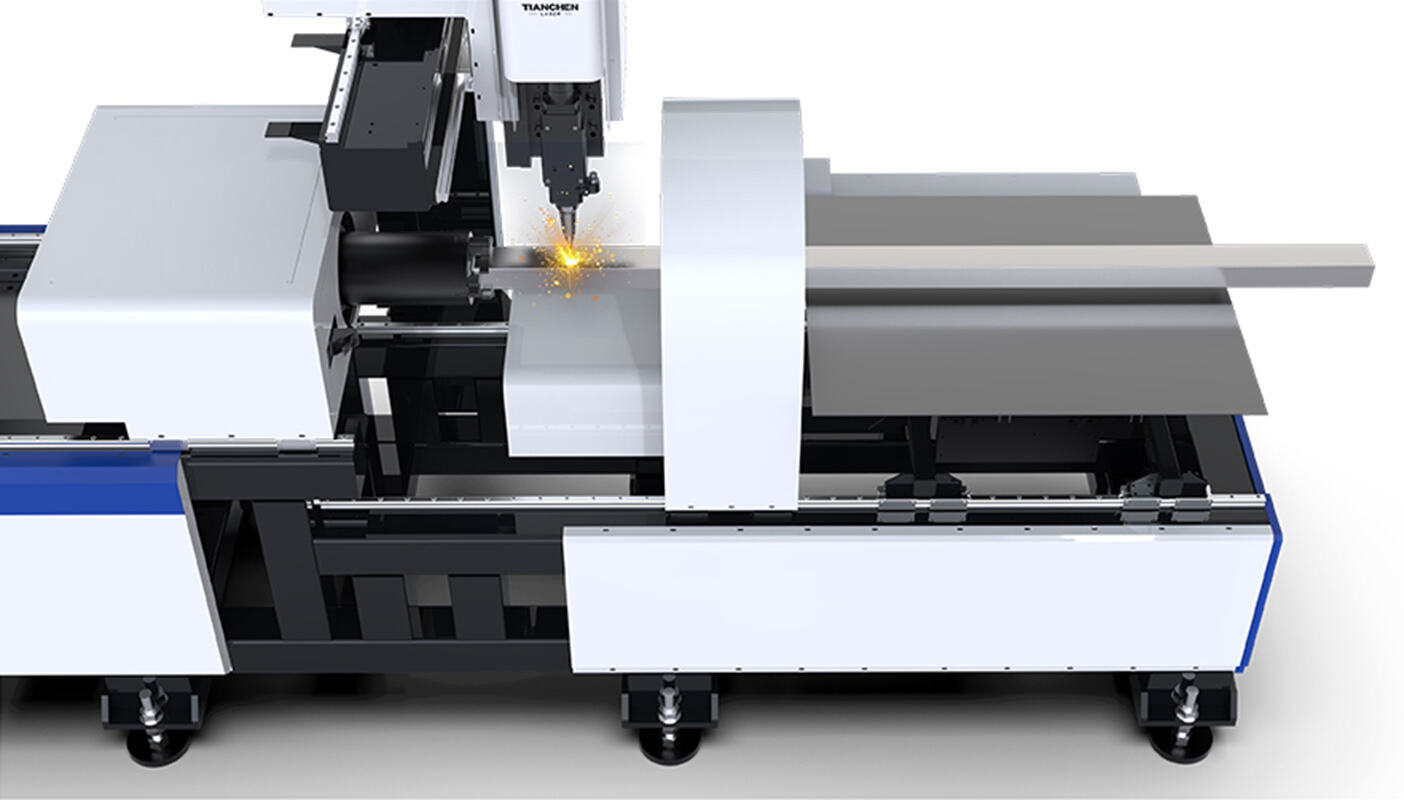

Enhanced Performance with Front Chuck Over-travel (Optional)
By allowing the front chuck to move, the laser head can be positioned between the front and rear chucks for cutting, ensuring the precision of long workpiece machining.
Machine Details

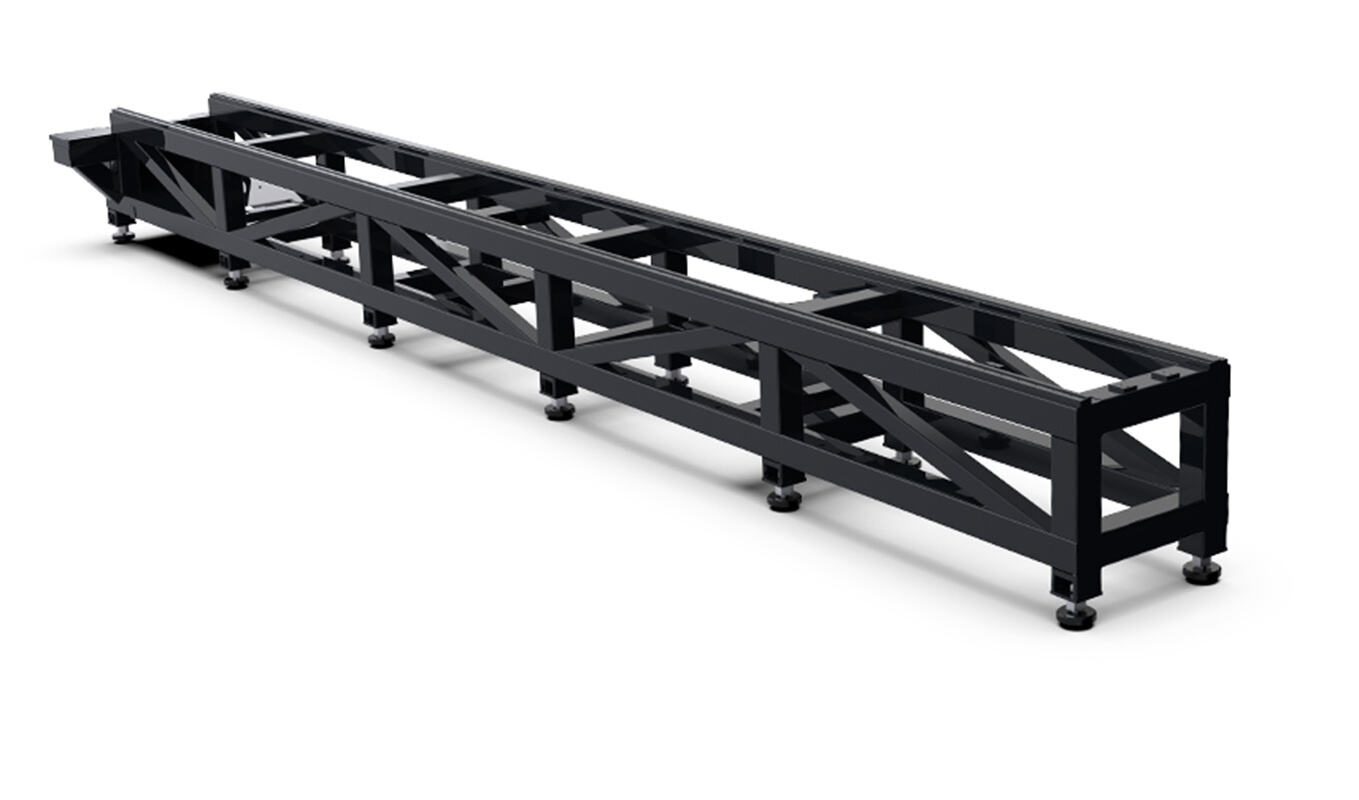

Machine frame
This machine adopts plate welding structure bed, the bed structure reaches the optimal stress point and support, the one-piece welding fixation can withstand greater load, and after aging treatment, greatly reducing the internal stress of the bed, to ensure the long-term stable operation of the equipment.
Maximum Feeding Acceleration: 1G
Maximum Chuck Rotation Speed: 140 r/min

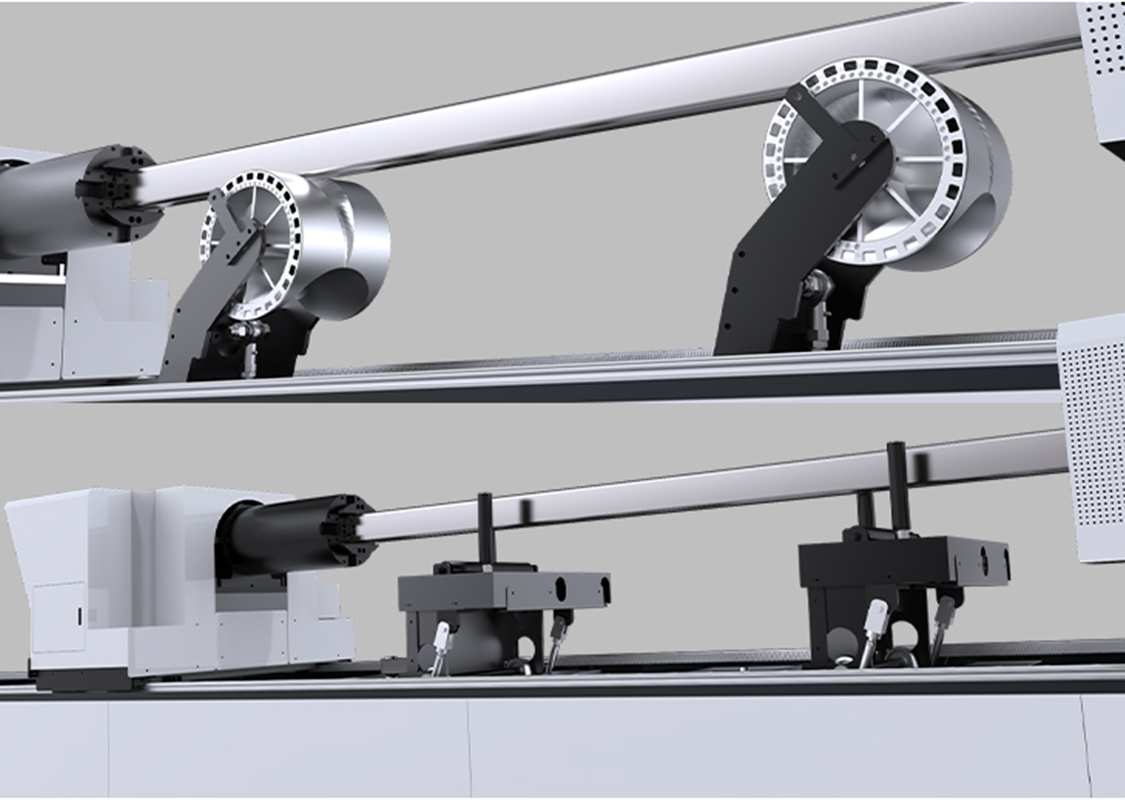

Precision Clamping, High-Speed Anti-WhipFully Enclosed Support Relentless Refinement

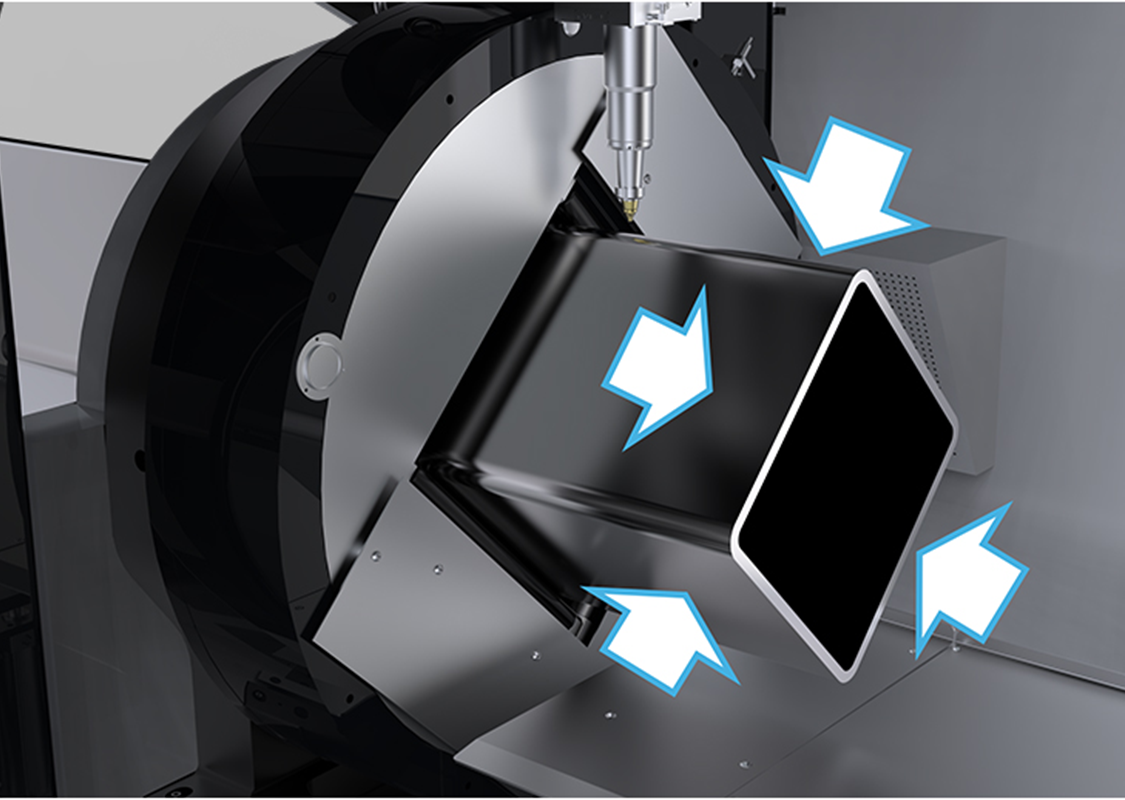

Professional High-Speed Chuck Cross Dual-Roller Clamping Non-Slip at High Speeds
Laser System
Laser SourceServo DriverServo Motor
Professional cutting laser source, small in size, light in weight, and easy to move and operate. With high-quality beam quality, high light conversion efficiency, the light emitting mode is more conducive to achieving a good and stable cutting effect.The fast-responding, enabling high-speed, high-precision control and efficient use of energy, with stable motors. Keeping the distance between the nozzle and the pipe unchanged, effectively guaranteeing the cutting quality and the cutting speed.Servo motors stabilise and drive the beam to control the movement of the Z-axis according to the programmed instructions to complete the cutting operations with complex precision, and the user can adjust the parameters according to their needs.
Laser HeadItaly PEK RailItaly PEK Gear
Equipped with laser cutting head which is a modular design with easy maintenance and dual water cooling circuits. Auto focus to reduce human intervention and improve piercing and cutting efficiency. IP65 class dustproof, patented cover glass cover plate.High carbon content, high compressive strength and high hardness. Low thermal sensitivity reduce the loss of equipment in using.Adopted Italy PEK linear guide rail, high positioning accuracy, scroll rail, high positioning accuracy, scroll accuracy for a longer time.
Control System
TubePro is specially designed for professional tube cutting, supporting the production of tubes and profiles in various shapes. It works seamlessly with TubeST nesting software for technology setup, advanced toolpath generation, and nesting to meet the standard and special production needs.TubePro supports a 3-chuck 7-axis linkage machine structure. Two moving chucks and one fixed chuck can transport pipes during production, achieving zero tail waste and saving more materials for customers. TubePro has designed technology to handle difficult corner-cutting. Proper settings of corner processes such as gas pressure, laser peak power, and duty cycle will improve corner production efficiency and quality.TubePro adopts a forward-looking strategy, calculates the lifting path in advance through the tube file, and controls the lifting and lowering of the laser head when turning. In addition to standard tubes such as square and round tubes, TubePro also supports the production of profiles and free-form tubes such as U/L/H/T channel, Obround, Ellipse, and Polygon.
FAQ
F：What materials can it cut?
Q：High - power laser - cutting machines can cut a variety of metallic materials, such as carbon steel, stainless steel, aluminum alloy, copper alloy and other metallic materials.
F：What's the maximum thickness of materials that a high - power laser - cutting machine can cut?
Q:The cutting thickness depends on the type of materials and the specific power of the laser - cutting machine. Generally speaking, for carbon steel, a high - power (such as 10 - 20kW) laser - cutting machine can cut materials with a thickness of up to 50 - 80mm; for stainless steel, it can cut plates with a thickness of 30 - 60mm. However, the actual cutting thickness will also be affected by factors such as cutting speed and auxiliary gas.
F：What's the impact of laser power on cutting
Q：Laser power is a crucial factor that affects cutting capacity. High power means stronger cutting ability, enabling the cutting of thicker materials and at a higher cutting speed. However, if the power is too high without appropriate parameters such as cutting speed and auxiliary gas, it may lead to a decline in the quality of the cut surface, with phenomena like over - burning and dross - hanging. During the cutting process, it's necessary to adjust the laser power reasonably according to the material and cutting requirements.
