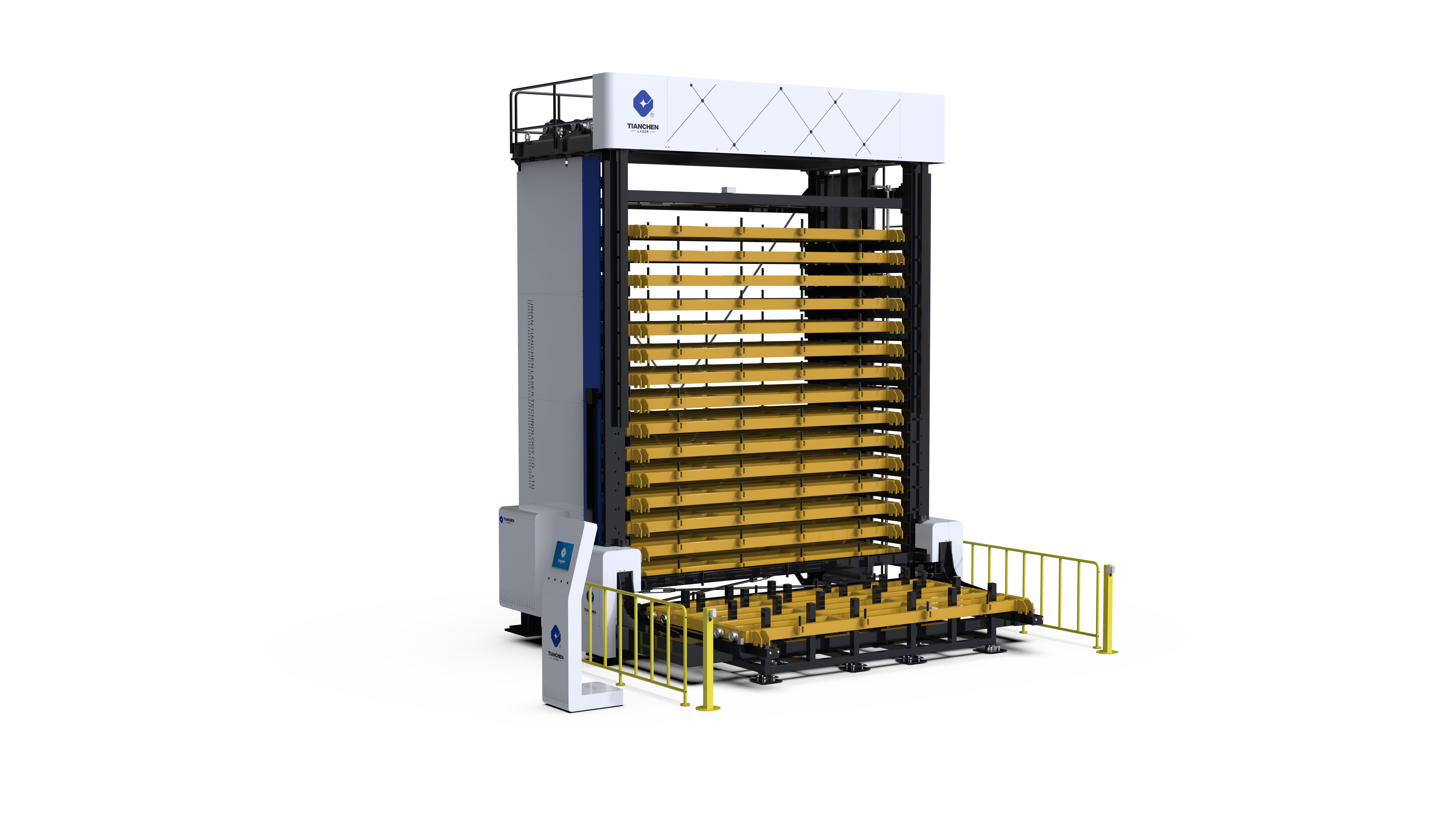

Must-Have for Laser Cutting Workshops: Analysis of Selection Parameters and Structural Design of Sheet Metal Storage Tow

Optimizing Workshop Layout and Material Flow for Laser Cutting Efficiency

The Role of Efficient Layouts in Enhancing Productivity

Workshop layouts that are thoughtfully designed can cut down on non cutting time during laser operations by around 18 to 22 percent as noted in an IMechE study from 2023. Putting those sheet metal storage areas close to where materials get loaded makes it faster for workers to grab what they need. Centralizing control panels also helps because operators don't have to walk all over the place anymore. Manufacturing plants that switched to cellular arrangements instead of old fashioned straight line setups typically see about 15 to maybe even 20 percent better machine usage rates. Industry insiders point out these improvements come from smarter space planning rather than just throwing money at equipment upgrades.

Best Practices for Workshop Organization and Material Storage in High-Volume Operations

Implement vertical storage systems with 800 mm aisle widths to maximize floor space without compromising accessibility. For operations processing over 50 tons monthly:

• Segregate raw materials, work-in-progress, and finished components into distinct workflow zones
• Use RFID-tagged racks synchronized with inventory management software
• Position frequently used metals (stainless steel, aluminum) within an 8-meter radius of primary laser cutters

U-shaped workflow patterns prove most effective, reducing material handling costs by $7.50/ton in high-throughput environments.

Impact of Material Flow on Workflow Efficiency

Cutting down sheet metal transport distances by just 10 meters can shave about 3.7 minutes off each production batch's cycle time. Many modern manufacturing shops now use real time tracking tech to keep tabs on where materials are going. These systems don't just track stuff they actually help redirect shipments when there's a backup and even figure out when inventory needs restocking through smart algorithms. Some factories ran tests over a whole year and found that switching to this demand based delivery approach cut forklift activity by around 40%. That might not sound like much until you realize it translates into roughly $142k saved every year at places of moderate size.

Case Study: Reducing Downtime Through Strategic Sheet Metal Placement

A Midwest fabrication plant achieved 30% faster job changeovers by reconfiguring storage tow positions based on cutting frequency data. The redesign:

Metric	Before	After	Improvement
Average setup time	47 min	33 min	29.8%
Daily production runs	9.2	11.7	27.1%

By aligning storage locations with CAD nesting software preferences, the plant reduced material search time by 15 minutes per shift. This optimization strategy now serves as an industry benchmark for laser cutting workflow efficiency.

Material Selection and Its Impact on Sheet Metal Storage Tow Durability

Material Compatibility with Different Laser Types (Metals vs. Non-Metals)

When choosing materials for storage systems in a laser cutting workshop, it's important they match up with what kind of laser tech is being used there. Fiber lasers work really well on conductive metals such as stainless steel and aluminum, whereas CO2 lasers tend to be better suited for non-metal stuff like acrylics or composite woods. Looking at metal storage solutions specifically, aluminum alloys are great because they're light enough to cut easily with fiber lasers. Galvanized steel though? That material actually conducts heat better which helps dissipate all that energy when running high power operations. According to a recent study from 2024 looking at material compatibilities, stainless steel storage racks cut down on reflective laser scatter problems by around 28% when compared against regular old untreated aluminum. Makes sense since reflection can cause all sorts of headaches during precision cutting jobs.

How Material Choice Affects Rack Durability and Configuration

Steel is really strong stuff, with yield strengths ranging from around 350 to 550 MPa, which means it can support much taller and denser storage setups compared to other materials. But there's a catch - without proper galvanization, steel will start corroding pretty quickly in those damp workshop conditions where humidity hangs around all day long. Aluminum tells a different story altogether. At just 2.7 grams per cubic centimeter versus steel's hefty 7.85 g/cm³, aluminum racks are way lighter on their feet, making them great for movable storage solutions throughout facilities. However, aluminum isn't quite as tough as steel, typically offering only 150 to 250 MPa yield strength before giving way under heavy loads stacked high above ground level. That's why many manufacturing spaces that handle everything from raw metal parts to plastic components end up going hybrid route. They install steel frames for that rock solid foundation while using aluminum shelves where workers need to rearrange things frequently without dragging around massive weights across the shop floor.

Property	Steel Storage Tow	Aluminum Storage Tow
Load Capacity	800–1,200 kg/m²	400–600 kg/m²
Corrosion Resistance	Requires galvanization	Naturally oxidation-resistant
Lifespan	15–20 years (coated)	10–15 years
Relative Cost	$12–$18/ft²	$18–$25/ft²

Corrosion Resistance and Load Capacity in Storage Solutions

Industrial facilities lose around $740,000 every year to corrosion related maintenance issues according to Ponemon's 2023 report, which really highlights why choosing the right materials matters so much. Galvanized steel stands out because it offers about 75% better protection against rust compared to regular steel, making it a smart choice for those coastal laser shops dealing with salt air all day long. Aluminum has its advantages though. The natural oxide layer actually repairs itself when there are small scratches, so it tends to hold up better than steel in places where chemicals are constantly present. When talking about supporting heavy loads, hot rolled steel racks that are 12 gauge thick can handle roughly 50% more weight than their cold rolled counterparts without sacrificing any of that important corrosion resistance factor either.

Steel vs. Aluminum: Storage Implications Based on Material Behavior

The thermal expansion properties of steel mean it changes size by about 0.4mm for every meter during seasonal temperature shifts. To handle this, most designers include those standard 5mm expansion gaps when welding frames together. Aluminum tells a different story altogether though. With an expansion rate around double that of steel at 23.1 µm/m°C, aluminum structures need bolted connections instead to accommodate all that movement. Shops that stick with steel often see significant savings over time. According to Shelter Structures research from 2024, steel workshops typically enjoy lifecycle costs about 40% lower than alternatives because they don't require frequent recoating like other materials do. Meanwhile, aluminum remains popular among companies focused on green initiatives since it can be recycled so easily, even if it does come with higher maintenance requirements down the road.

Structural Design Principles for High-Integrity Sheet Metal Storage Racks

Designing Load-Bearing Structures for Dynamic Workshop Conditions

Storage racks in laser cutting workshops must withstand shifting loads from 500–2000 lb steel sheets while accommodating forklift impacts. Cross-bracing systems reduce lateral deflection by 60% compared to static designs (Warehouse Safety Council 2023), with galvanized steel frames providing optimal strength-to-weight ratios for dynamic environments.

Trend: Modular Frame Systems with Reinforced Bracing

Modern workshops increasingly adopt boltless, modular racking featuring:

• Interchangeable 14-gauge steel components
• Diagonal truss reinforcements at stress points
• Tool-less height adjustments (±0.25" precision)
  These systems reduce installation time by 40% while maintaining 1.5× OSHA safety factors for seismic zones.

Strategy: Finite Element Analysis for Rack Stress Testing

Leading manufacturers now simulate:

Load Scenario	Simulation Detail	Safety Threshold
Asymmetric loading	70% capacity offset	<2mm deformation
Forklift impact	5mph lateral collision	No joint failure
Seismic event	0.3g horizontal acceleration	<5° tilt

This proactive approach identifies failure risks before fabrication, reducing field modifications by 55%.

Data Point: 40% Increase in Rack Longevity with Gusset-Reinforced Joints

A recent implementation demonstrated triangular gusset plates at column bases increased mean time between failures from 7 to 9.8 years in high-usage environments. The 12mm thick reinforcements distributed stress concentrations more effectively across baseplates, particularly when handling 6000–1500mm sheets.

Design for Manufacturability: Integrating Laser Cutting Precision with Storage Tow Assembly

Applying Design for Manufacturability to Storage Tow Fabrication

When it comes to designing storage tow systems for laser cutting shops, the first step is usually about cutting down on fabrication headaches. Shops that focus on making parts as single pieces rather than multiple components save themselves a ton of trouble during assembly. Standardized connections between different system parts cut down on assembly work by around 35%, all without compromising how sturdy everything stays. This kind of thinking fits right into what most manufacturers call lean production practices. According to various industry reports, companies that implement proper DFM techniques tend to speed up their production lines by approximately 22% over conventional approaches. The savings aren't just in time either these streamlined designs often mean fewer mistakes during setup and maintenance too.

Sheet Metal Design Guidelines for Modular, Boltless Assembly

Modular systems using interlocking joints and folded flanges eliminate fasteners while supporting dynamic load redistribution. Recent advancements enable boltless racks to withstand 1,200 kg/m² loads without welding—a 65% improvement over 2020 designs. Slotted connection systems with ±0.5mm positional accuracy allow rapid reconfiguration, critical for workshops adapting to mixed-material processing workflows.

Laser Cutting Precision Requirements for Interlocking Components

Research from aerospace manufacturing shows that laser systems need to stay within about 0.127mm tolerance range to avoid those tiny gaps forming between structural joints. When it comes to those interlocking tabs and slots, keeping edges perpendicular within less than half a degree makes sure the load bearing surfaces actually touch properly. There are these adaptive kerf compensation systems now that have been tested in real industrial settings. They basically tweak the cutting path as needed so alignment stays accurate around 0.254mm across different batches of materials. This kind of adjustment helps maintain consistency even when working with materials that vary slightly from batch to batch.

Kerf Compensation and Fit Tolerances in Assembly Systems

When making strategic kerf offsets around 0.1 to 0.3 mm based on material thickness, it allows parts to fit together under pressure without warping or bending. Tests have found that when these adjustments are made correctly, the resulting joints become about 40 percent stiffer than those made from standard cuts. In applications where components cycle frequently, engineers need to consider several factors in their tolerance planning. Thermal expansion is one concern, especially since steel can expand up to 1.2 mm per meter length. Another issue comes from laser beam divergence that occurs over time during extended operations, which affects dimensional stability across repeated use cycles.

Aligning Storage Tow Design with Laser Cutting Machine and Workflow Requirements

Matching Storage Dimensions to Laser Cutting Machine Work Area Size

Workshops that use laser cutting equipment run most efficiently when their storage areas match up with what the machine can handle. Take those common 4 foot by 8 foot cutting tables for instance. The best setup? Keep about a foot or so between the modular storage racks and the actual cutting bed. This gives workers easy access to materials without having to crawl all over the shop floor. When everything fits together properly like this, shops report saving roughly 17 percent on material handling time during busy periods. Makes sense really, since nobody wants to waste precious minutes moving stuff around when there are deadlines to meet.

Linking Cutting Optimization to Storage Tow Positioning

Strategic storage placement directly impacts workflow velocity. Positioning racks perpendicular to the machine’s shuttle axis cuts transfer distances by 30%, as demonstrated in automated storage integration case studies. This configuration enables simultaneous loading/unloading cycles, keeping laser systems active 89% of operational hours versus 72% in decentralized layouts.

Principle: Just-in-Time Material Delivery from Storage to Machine Bed

Adopting FIFO (First-In, First-Out) rack designs slashes idle time by ensuring pre-sorted materials arrive at the cutting bed within 45-second intervals. Workshops implementing sequenced delivery protocols report 23% fewer machine pauses for material replenishment compared to manual retrieval systems.

Ensuring CNC Loader Compatibility Through Proper Tow Height and Accessibility

CNC loaders require storage heights ≥12 ft with 3” vertical adjustability to maintain precision gripping. Adjustable pallet systems with ±0.5° tilt compensation—like those used in modular automation platforms—reduce part misalignment errors by 34% while accommodating 4,000–8,000 lb payload tolerances.
