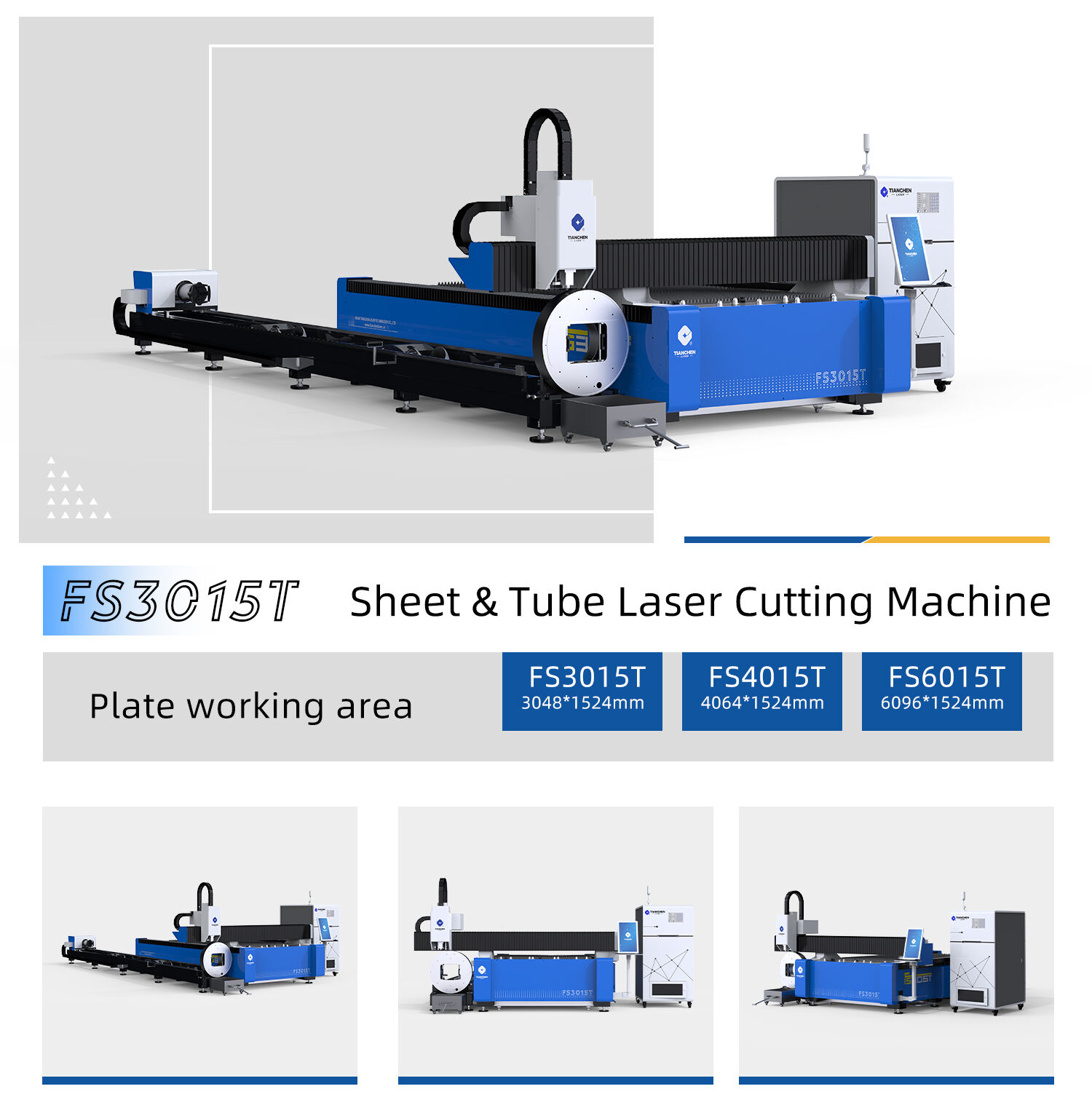

Laser CNC Machine: Core Tool for Automated Metal Forming

How Laser CNC Machines Work in Modern Metal Fabrication

What Is a Laser CNC Machine?

Laser CNC machines, those fancy computer-controlled systems, work by directing intense light beams to cut, engrave, or even weld various metals with incredible accuracy down to microns. These devices started appearing in factories back in the 70s and completely changed how things get made. Today, they account for around 42 percent of all equipment used in sheet metal fabrication worldwide according to industry reports. When working with materials like aerospace quality aluminum or stainless steel, skilled technicians can translate digital design files into actual parts with tolerances measuring just plus or minus 0.1 millimeter. That kind of precision matters a lot when building aircraft components or medical devices where every fraction counts.

How Does CNC Laser Cutting Work?

Laser cutting starts with powerful lasers created using different methods like fiber optics, carbon dioxide gas, or crystals. These lasers usually have power levels between around 1 to 20 kilowatts. When the laser beam passes through a special lens, it gets concentrated down to a tiny spot measuring roughly 0.1 to 0.3 millimeters across. This intense concentration melts or actually vaporizes materials as they follow paths programmed into computer numerical control systems. Take for instance a 6 kW fiber laser setup which manages to slice through 10 mm thick steel at about 3 meters per minute. What makes this impressive is how small the heat affected area stays below half a millimeter, so the surrounding material remains intact and usable after cutting.

Main Stages of the CNC Laser Cutting Process

1. Design Input: CAD/CAM software converts blueprints into G-code.
2. Machine Setup: Material is secured on the worktable, and focal length is calibrated.
3. Cuting Execution: The laser traverses the programmed path, assisted by gas jets to eject molten residue.
4. Quality Verification: In-line sensors measure kerf width and edge smoothness to ensure compliance.

Types of CNC Laser Cutting Machines (Fiber, CO₂, Nd:YAG)

• Fiber Lasers: Ideal for metals, offering 30% faster speeds than CO₂ systems and superior energy efficiency.
• CO₂ Lasers: Suited for non-metals like wood or acrylic due to adjustable wavelengths.
• Nd:YAG Lasers: Used in high-precision applications such as medical device engraving, though less common in large-scale fabrication.

Key Components and Integration with Smart Manufacturing

CNC Control Unit and Computerized Motion Control

At the heart of laser CNC machines sits the CNC control unit, which basically serves as the machine's central processing system. It takes those digital design files and converts them into actual cutting instructions using G-code programming language. Modern systems come equipped with advanced motion controllers capable of achieving positioning accuracy around plus or minus 0.005 mm. This level of precision makes it possible to produce intricate shapes needed for parts used in aerospace applications and medical devices where tolerances matter a lot. The system also incorporates real time feedback mechanisms between the servo motors and main control board. These help adjust for any thermal expansion issues that might occur during operation, so the machine keeps producing consistent results even when running non stop for hours on end.

Integration of Laser Systems with Industry 4.0 and IoT

Modern laser CNC systems embed IIoT sensors that monitor beam intensity (±2% stability), gas pressure, and focal length adjustments. This data integrates with Industrial IoT frameworks to enable predictive maintenance, reducing unplanned downtime by 18–22% in automotive stamping operations. Connected systems increase production efficiency by 25–30% through real-time process optimization.

Worktable & Material Handling Systems for Continuous Production

Automated pallet changers and magnetic conveyor systems keep laser cutting stations active 98.5% of operational time. Vacuum-based worktables with adaptive clamping accommodate sheet metal thicknesses from 0.5 mm to 25 mm without manual recalibration, making them ideal for high-mix manufacturing environments.

Automatic Loading/Unloading Systems in CNC Laser Automation

Robotic arms equipped with machine vision achieve <0.2 mm positioning repeatability when transferring cut parts to secondary processing stations. End-to-end automation reduces material handling costs by 40% in industries like appliance manufacturing, where over 50 tooling changes occur daily.

Precision, Accuracy, and Industrial Performance Metrics

Role of CNC in Ensuring Dimensional Accuracy

Computer Numerical Control systems cut down on mistakes made by humans because they follow digital blueprints with incredible precision, typically within about 0.005 inches or 0.127 millimeters. Recent research from last year looked at parts used in aircraft manufacturing and found these machines can repeat their work almost perfectly, getting it right 99.8 times out of 100 after running through thousands of cycles. The reason for such accuracy lies in several key components working together. Machines need strong frames to stay stable during operation. They also incorporate systems that adjust for temperature changes which might otherwise affect measurements. And there are special devices called linear encoders that check where each part of the machine is moving roughly every 0.0001 seconds, making sure everything stays on track.

Advantages of CNC Laser Cutting: Narrow Kerf, Low HAZ

Modern fiber lasers produce kerf widths as narrow as 0.1 mm, reducing material waste by 15–20% compared to plasma cutting. The concentrated beam limits heat-affected zones (HAZ) to 0.5 mm in stainless steel, minimizing post-processing needs for sensitive components like medical implants. Key performance metrics include:

• Cutting speed: 10 m/min for 6 mm mild steel
• Power efficiency: 30% higher than CO₂ lasers
• Surface roughness: Ra ≤ 3.2 µm without secondary finishing

Data-Driven Performance: Tolerance Levels in Industrial Use Cases

Industry-specific requirements shape calibration standards:

Industry	Typical Tolerance	Compliance Standard
Automotive	±0.05 mm	IATF 16949
Aerospace	±0.0127 mm	AS9100
Medical Devices	±0.025 mm	ISO 13485

These tolerances are maintained through weekly laser power calibration and daily nozzle alignment checks using automated probing systems.

When Precision Outweighs Cost: High-Tolerance Applications

When it comes to making jet engine turbine blades, manufacturers are willing to pay 3 to 4 times more for machining just to hit those super tight ±0.005 mm airfoil tolerances. The same goes for optical components where makers will sacrifice production speed for surface flatness below 0.1 microns. Sometimes these parts take as long as three full days to finish, especially when dealing with important infrared lens arrays. A recent study from the Precision Manufacturing Report shows something interesting though. Companies using AI help with their CNC machines see around 140 percent better return on investment in industries needing such tight tolerances compared to old school methods. This makes sense given how much money is wasted otherwise trying to meet those specs without smart assistance.

Software, Programming, and Full Production Workflow Integration

CNC Laser Cutting Programming: G-Code, M-Code, and CAM Software

Laser CNC machines operate using G-code for geometric commands and M-code for machine functions. CAM software translates CAD designs into executable instructions, reducing programming errors by 73% compared to manual input. Advanced platforms incorporate real-time feedback to dynamically adjust laser power and feed rates during operation.

Seamless CAD/CAM Integration for Rapid Prototyping and Production

When CAD/CAM systems work together seamlessly, they can turn those complex 3D designs right into machine instructions, which means prototypes get made much faster than before sometimes as much as 40% quicker. The two way communication between design and manufacturing really helps too. When someone changes a design, the CNC program gets updated automatically. And actual production numbers feed back into simulations making them more accurate over time. Shops that have adopted these integrated platforms often see around a third less material going to waste. This happens because all the design work, how parts fit together on sheets, and where everything goes gets tracked properly throughout the whole process from start to finish.

Case Study: Fully Automated CNC Laser Cell in Automotive Manufacturing

One major automotive parts manufacturer recently set up a fully automated CNC laser cell that works without any lights on during operation. This setup combines robots for moving materials around with smart cutting software that adapts as needed. What makes this system impressive is how reliable it stays, running almost constantly at about 99.7% uptime. The machine can switch between different programs for making car parts automatically depending on what's needed next on the production line. Factory supervisors noticed something pretty remarkable too – they cut down their changeover times by nearly 60%. This improvement means they can customize small batches of electric vehicle battery housings all within a single day now, which was practically impossible before.

Flexibility in Batch Production and Customization via CNC Controls

Cloud-based CNC controls let operators remotely switch between production runs—from 5 to 5,000 units—without physical tooling changes. Machine learning optimizes nesting layouts dynamically, achieving 92–95% material utilization across mixed batches of stainless steel and aluminum. Permission-based access allows certified clients to securely submit custom designs directly into production queues.

Future Trends: AI, Ultrafast Lasers, and Scalable Hybrid Solutions

AI-Driven Optimization in CNC Laser Path Planning

Artificial intelligence is changing how we plan laser paths, slashing material waste somewhere around 22 percent while making things go faster overall. The machine learning stuff looks at past jobs and adjusts those tool paths on the fly when needed. This helps deal with all sorts of material differences and keeps heat from messing up the work too much. For certain metals like titanium or aluminum alloys used in planes, generative AI actually figures out what gas pressure works best. This has cut down mistakes in aerospace manufacturing by roughly 37%. Systems that combine AI with sensors can tweak focal points and power levels automatically as they run. Many factories are now seeing these smart adjustments as part of their modernization efforts similar to what's happening across manufacturing worldwide.

Ultrafast Lasers and Their Impact on Precision Metal Cutting

Femtosecond pulsed lasers can create kerf widths below 10 micrometers, allowing manufacturers to produce tiny features needed for things like medical implants and electronic components. These lasers cut down on heat affected areas by almost 90% when compared with older CO2 laser technology, something that really matters when working with materials sensitive to heat such as shape memory alloys. Some recent testing demonstrated these advanced lasers slicing through 3mm thick stainless steel at speeds around 12 meters per minute while maintaining position accuracy within plus or minus 2 micrometers. This kind of precision makes them indispensable tools for fabricating parts used in electric vehicle batteries where even small tolerances matter a lot.

Hybrid Systems: Combining CNC Laser with Other Forming Technologies

The latest hybrid laser CNC machines come equipped with additive manufacturing heads that let them do both subtractive and additive work in one go. According to some recent testing done last year, manufacturers saw their production times cut down by nearly two thirds when making hydraulic manifolds through this combination approach of laser cutting alongside directed energy deposition techniques. What really stands out though is how these systems perform during turbine blade repairs. The artificial intelligence component handles all the coordination between laser cladding processes and those super precise machining operations, everything happening within just one setup rather than multiple steps across different machines.

Market Forecast: Growth of Smart CNC Lasers (2025–2030)

Smart CNC laser markets seem set for strong growth over the next few years, probably hitting around 14.3% annual growth rate until 2030. This surge comes from companies wanting their machines connected to industrial internet of things networks. Looking at where this equipment ends up, cars and green energy projects will take most of it - roughly 58% according to estimates. These industries prefer systems that have edge computing built right in so they can check product quality without sending data back to central servers. What's really interesting though is how fiber lasers are becoming king of the hill. They eat up way less electricity than older models from 2023, cutting power needs down somewhere around 40%, yet still manage to keep putting out those 6 kilowatts needed for serious cutting jobs.

FAQ

What is a Laser CNC Machine?

A Laser CNC Machine is a computer-controlled device that uses powerful laser beams to cut, engrave, or weld metal materials with high precision.

How does CNC laser cutting differ from traditional cutting methods?

CNC laser cutting offers precise, spotless cuts with minimal heat-affected areas, unlike traditional methods that might leave burs or require more post-processing.

What materials can be processed using Laser CNC Machines?

Laser CNC Machines can process various metals like aluminum, stainless steel, as well as non-metals like wood or acrylic using different laser types.

How does AI improve CNC laser path planning?

AI optimizes tool paths, reducing material waste and improving speed by analyzing past jobs and adjusting paths dynamically.
